Description

Product features:

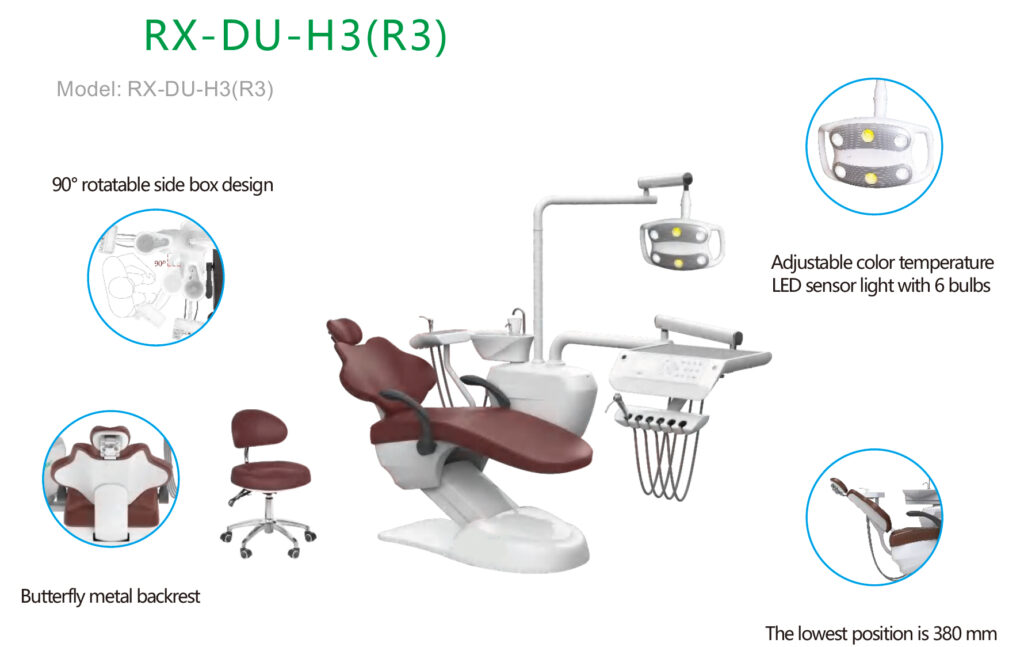

1. Luxury sensor dental lamp with 6 LED bulbs and 2 light sources for option.

2. The lowest position of dental chair is 380mm, which is convenient for the older and younger to sit.

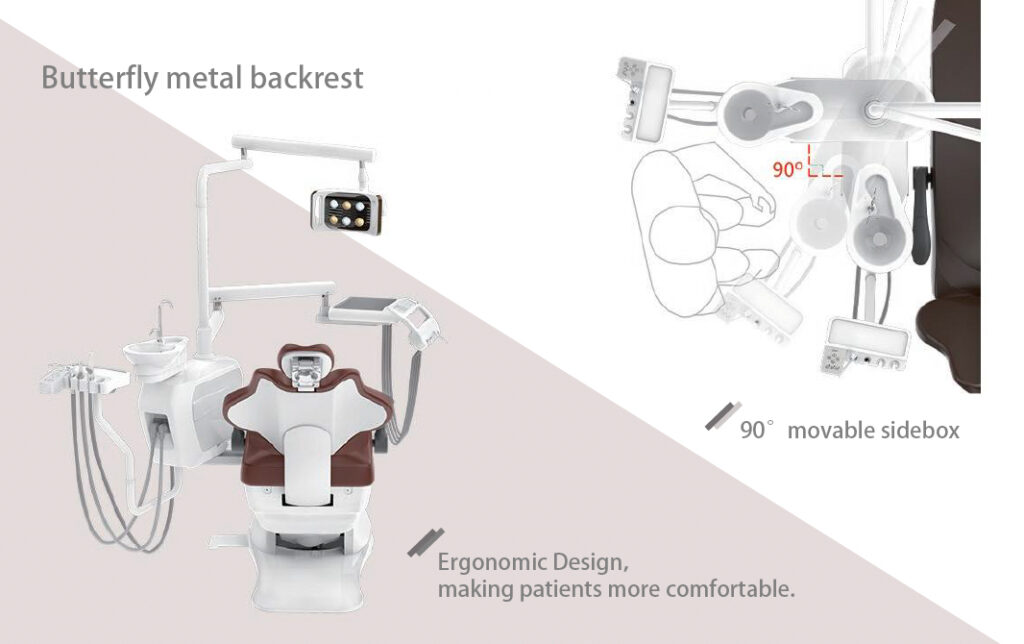

3. Sidebox can be rotated 90 degree, providing enough space for operation of dentist and nurse.

4. The patient chair is ergonomically designed to make the treatment process more comfortable.

5. The strong and weak suction handle is a combination structure of stainless steel, aluminum alloy and silicone, which is light in weight and has good sealing performance.

Specifications:

• Power Voltage: 220V-50Hz / 110V-60Hz

• Motor Voltage: 24V

• Air Pressure: 0.5MPa-0.8MPa

• Water Pressure: 0.2MPa-0.4MPa

Standard configurations:

• High speed handpiece tube – 2set

• Low speed handpiece tube – 1set

• 3-way syringe (hot/cold) – 2set

• Rotatable side box – 1set

• Integrated ceramic spittoon – 1set

• Sensor LED dental lamp with 2 light sources – 1set

• Strong/weak suction – 1set

• Imported motor – 1set

• Main control system – 1set

• Assistant operating control system – 1set

• Water heater system – 1set

• Luxury multifunction foot pedal – 1set

• Air brake instrument tray – 1set

• Import air&water pipe – 1set

• Microfiber leather cushion – 1set

• Double armrests – 1set

• Dentist chair – 1set

• With 9 memory chair positions – 1set

• Compensation chair position – 1set

• Independent water heating system for handpiece – 1set

• Double water bottles – 1set

REQUIREMENTS FOR PIPING LAYOUT IN DENTAL CLINICS

1. Water supply pipe: white PPR hot-melt pipe, reserved 4 points of copper inner thread interface (recommended to leave 4 points inner and outer thread through valve);

2. Air supply pipe: white PPR hot-melt pipe, reserved 4 points of copper female connection
   Mouth (it is recommended to leave 4 points for the inner and outer teeth straight-way valve);

3. Sewage pipe: white PVC drainage pipe, 75mm in the injection pipe, p50mm in the branch pipe

4. Multimedia line tube: 40mm in the Baizheng PVC threading tube, leave one lead; for the root, you need to reserve the wire:
   ① USB: When the dental chair is used as an endoscope, the endoscope -> floor box -> side cabinet-computer USB interface
   Telephone line hospital call system (four-core telephone line), instrument tray—ground box->side cabinet->call system
   ② Network cable: one for dental chair remote diagnosis, one for upgrading microscope, one for CAD beside the chair
   ① VGA/HDMI cable: short-distance image and video signal cable transmission
   ⑤ SDI HD cable: dedicated video transmission (long-distance signal is not damaged)

5. Power cord: white PVC threaded pipe, 4 points (middle 20mm) pipe sleeve 3*1.5mm² wire, the fire, zero, and ground wires are connected from the air switch box, and one socket with a switch is reserved;

6. Negative pressure signal line: white PVC threaded pipe, 4 points (middle 20mm) pipe sleeve 2*1mm² line;

7. Negative pressure pipe: 50mm in the main blue PR water supply pipe, D32mm in the branch pipe, 25mm in the diameter of the dental chair.

Note: Right-angle joints cannot be used at the connection of the drain pipe and the negative pressure pump, and a 45-degree elbow should be used. Both the water supply of the purifier and the air inlet of the air compressor need to reserve switches.
