Description

Alexandrite Long Pulse Laser Hair Removal GENTAL MAX PRO

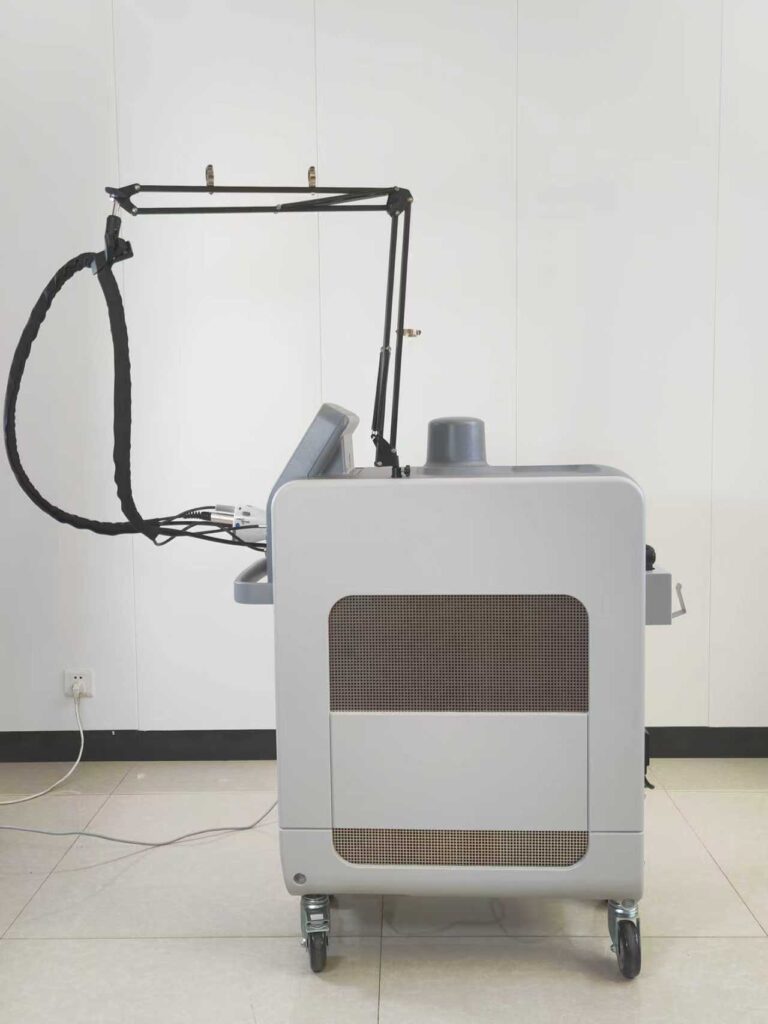

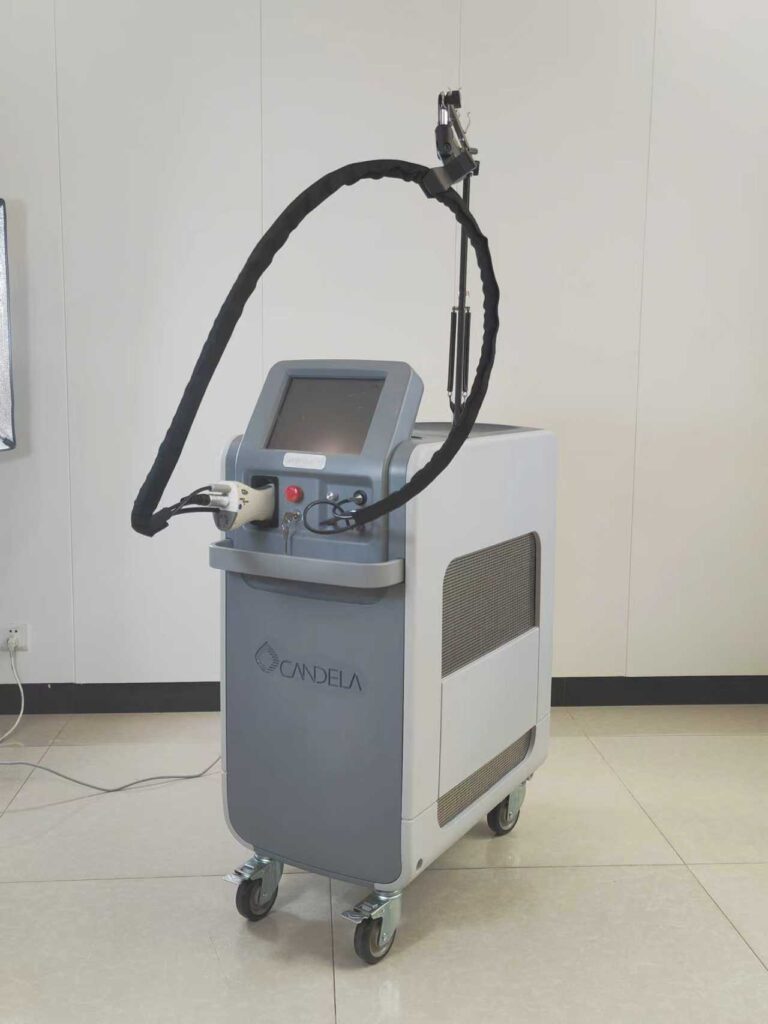

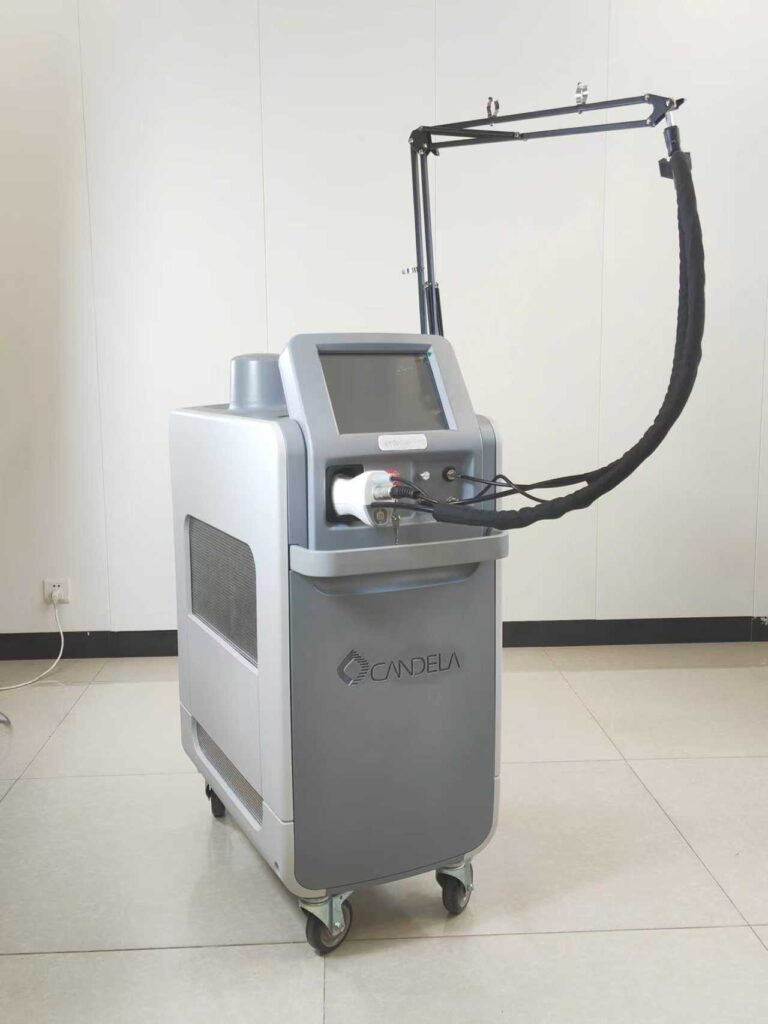

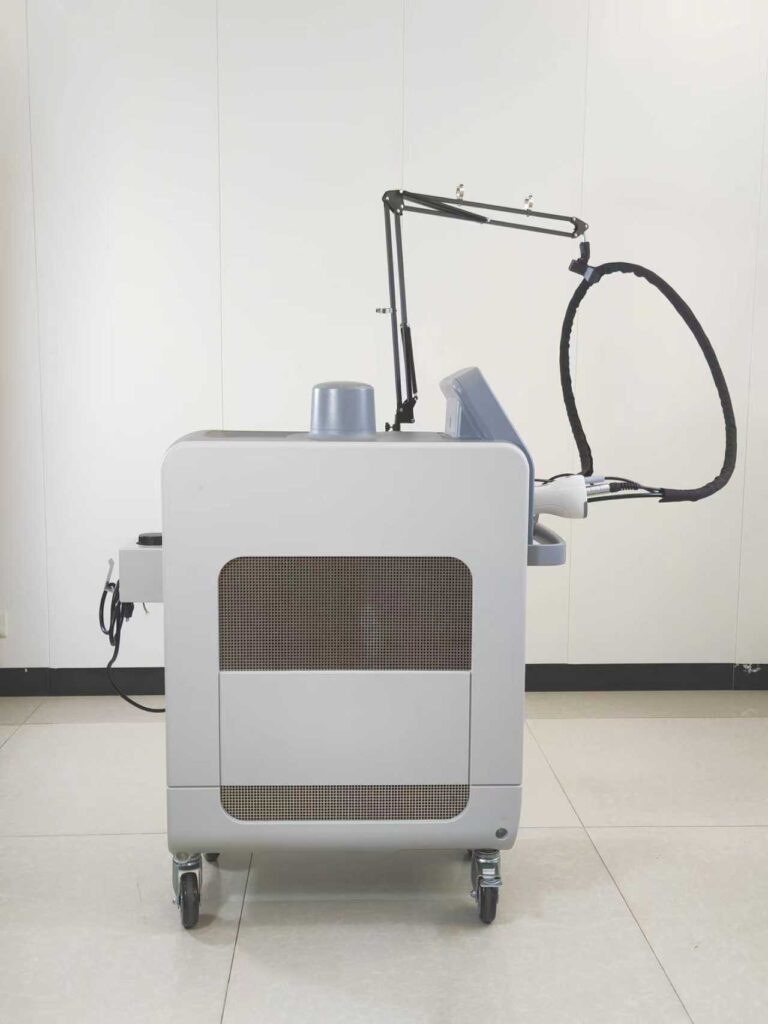

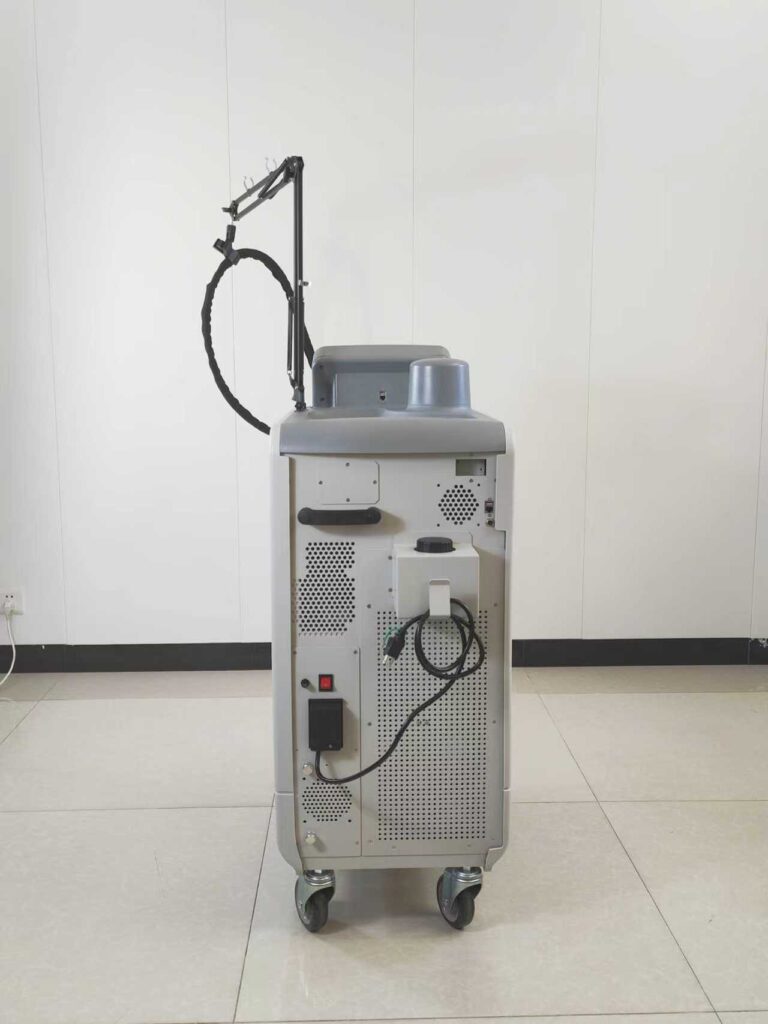

Appearance & Components

(Noted: This photo is only considered as a reference; please reply with the real laser which may has differences at some details from the photo showed above.)

1. Caster: to support and transport the equipment.

2. Handrail: to move the equipment.

3. Right panel.

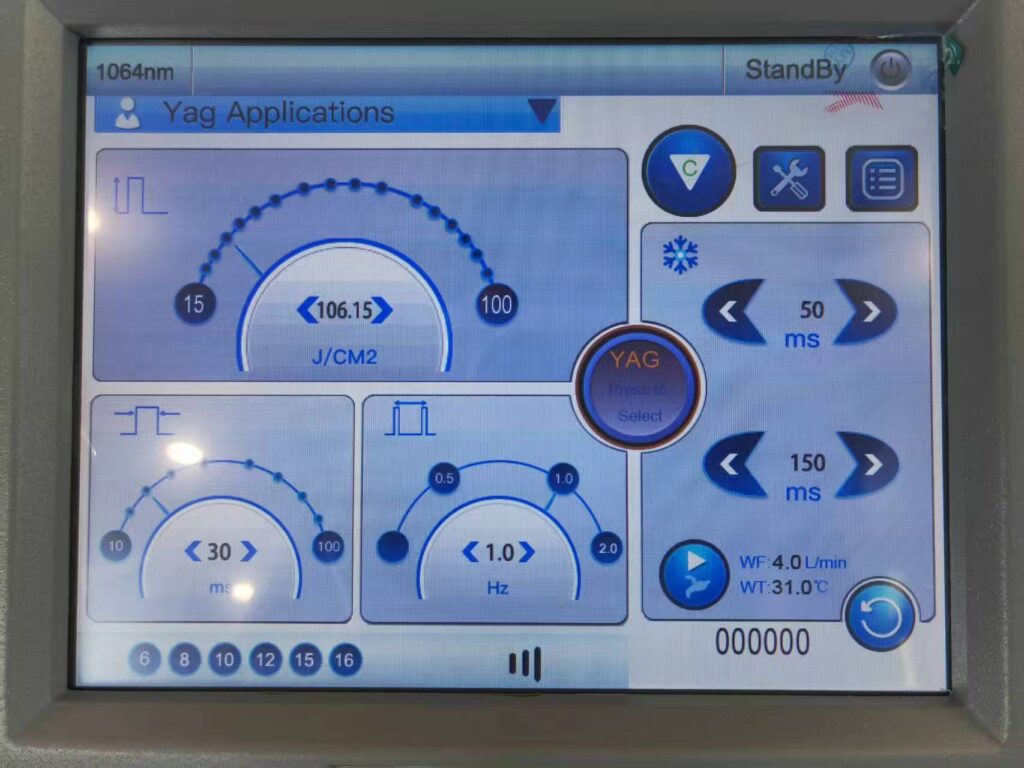

4. Monitor: to operation by software.

5. Bracket: to catch the headpiece.

6. Fiber: to conduct laser energy.

7. Foot switch: to control the energy output

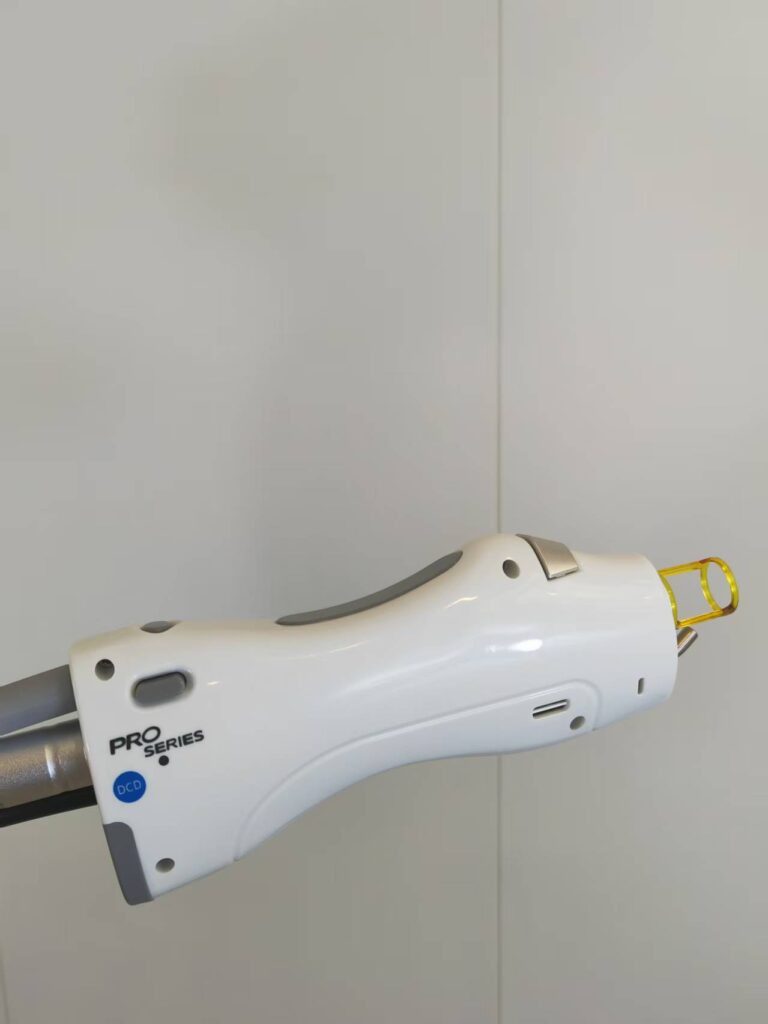

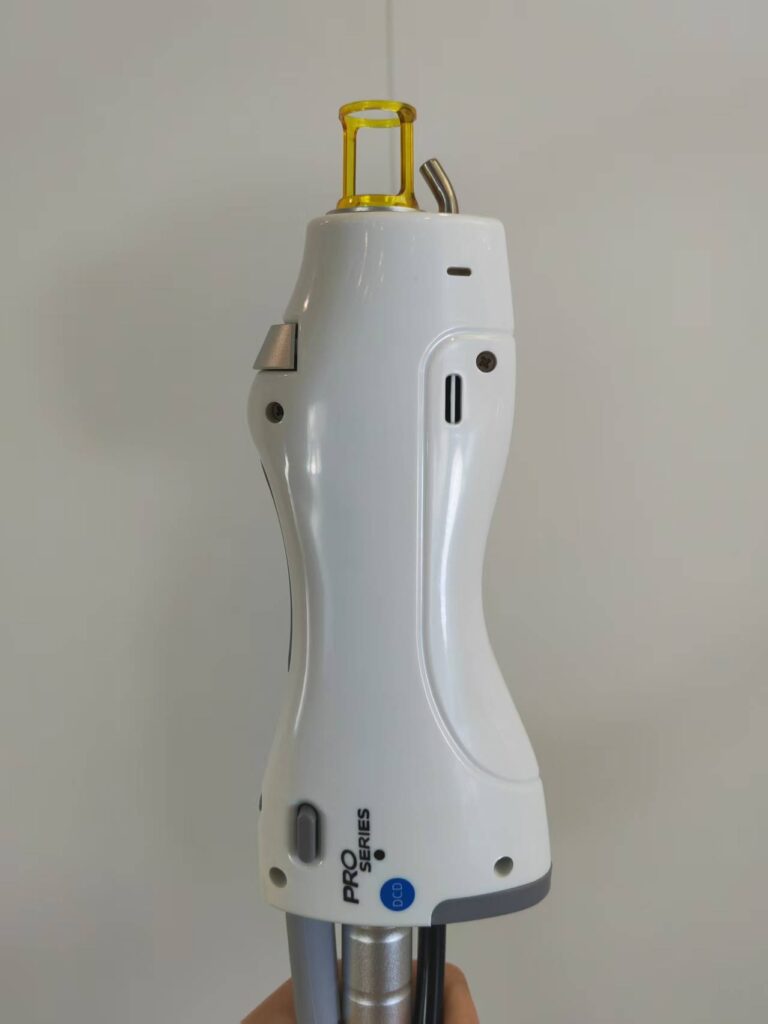

8. Headpiece: headpiece for treatment.

9. Emergency: to stop for emergency.

10. Key switch: to switch on the laser.

11. Front panel.

12. Finger switch.

Safety

This article shows the details of safety when operation. The operator and technician must be certified after professional training of safety, know well the requirements of safety and steps to operate the laser.

Electric safety

1 ．Make sure the voltage of laser requiring will be adapted by local electricity supply.

2 . 10 minutes after switching off and plug off the cable, only the maintenance can be started. No leave the laser without anyone taking care of by power on, or else injure will be happened to human or laser itself.

3 . Ensure that all the operators and their assistants know how to operate the laser and know well how to switch off laser when emergency.

4 . There is high voltage inside the laser, only qualified technicians or workers from Professional company can repair of maintain the laser.

5 . The laser connects earth with a wire of yellow and green color, photo A. Fine earth connection is very important.

Optical safety

1. Laser headpiece is of high energy output, no look at directly without any protection.

2 . Ensure the operating room is no mirrors or any articles which can function as a mirror to reflect the laser.

3 . Ensure that all the operators and assistants know well the knowledge of optical safety.

4 . Ensure that all the operators and assistants and workers are protected well by goggles, and the patients are wearing the eye-patch.

5. As the high laser peak power and density, operation error will damage the skin.

6 . Laser 1064nm is invisible; the eyes will be blanked forever if wrongly shooing into.

7. Laser 755nm is visible red, and the eyes will be blanked forever if wrongly shooting into. Also, staring for long while, discomfort will be caused.

8. Laser definitely cannot shoot at eyes even goggles and eye-patch are well wearing.

9 . The remarkable area should plant a label plate “ Caution of Laser”.

Specifications

Machine specification

Control

• Monitor: 10 inches Digital Real Color LCD

• Interface: Touch

• Control system: Single chip

Headpiece

• Headpiece/spot-size: 6–20mm spot-size with natural wind cooling

• Wave-length: 1064nm & 755nm

Cooling

• Cooling system: Water cooling + TEC cooling + Condensor + high power fan

• Water temperature: 5–45 °C auto control

• Skin cooling: Air cooling / Nitrogen cooling / Cold air cooling (Optional)

Interface

• Energy: 15–100J @ 1064nm, 15–100J @ 755nm

• Pulse width: 10–100ms

• Pulse interval: 10–100ms

• Pulse frequency: 0.5Hz, 1.0Hz, 2.0Hz

• Capacitance: 150000uf×6

Size & Weight

• Size: 104 × 59 × 127 cm

• Net weight: 100KG
